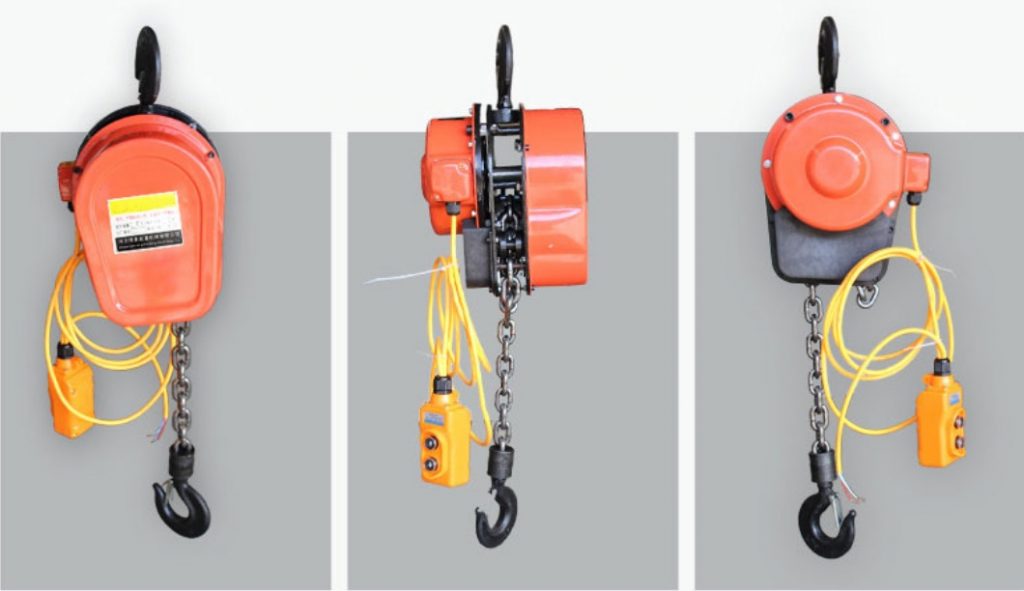

Megalift 1 ton Electric crane, three-phase, double-acting, Russian design | DHS1T

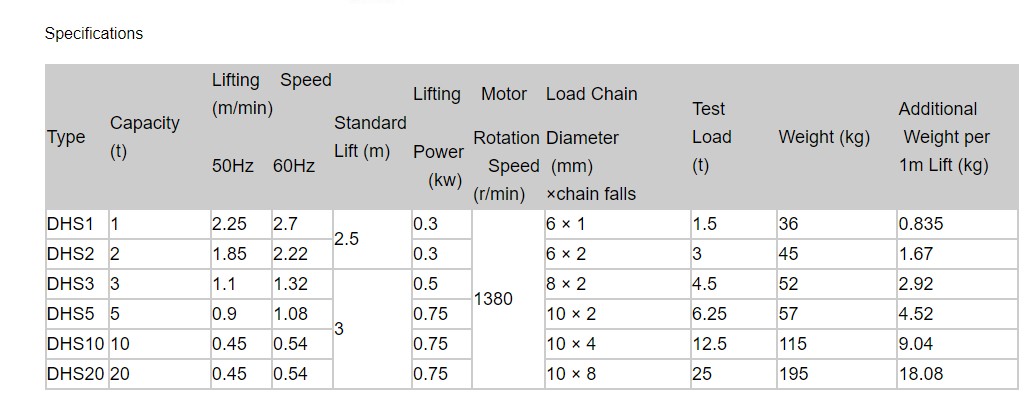

Technical specifications table

Introduction to the features and quality of construction of the three-phase electric double-acting Russian design (DHS) Megalift crane

1. Shell | Housing
The shell is made of light aluminum, light, solid, stronger and smoother. The cooling fins are specially designed to ensure a fast heat dissipation rate of up to 40% and continuous service. The integrated closed structure is suitable for chemical plants and plating plants.

2. Chain

The G80 chain can be safely used in weak cases such as rainwater, seawater and chemicals, which has a high-strength chain and high-precision welding technology, in accordance with the international standard ISO3077-1984 and is suitable for excessive unwanted working conditions. Most importantly, they feel better in your hand.

3. Motor

A high-performance motor is light in weight and small in size. The speed can reach 3000 0r.M.P. With high starting torque and high energy efficiency, the electrical continuity rate reaches 60%, which can meet the needs of high-frequency processing.

4. Push button | Control handle

The push button is waterproof, which is very durable. These buttons can control the operation as soon as possible, especially in dangerous and serious cases.

5. Hook

The hook is made of advanced alloy steel, with good strength and no breakage. The operation of the lower hook is guaranteed by 360-degree rotation and safety tongue. In addition, it has high strength and high safety, so the load will never escape from the use of the new design.

6. Limit switch

The limit switch device is installed on the upper and lower weight and cut off, so that the motor stops automatically. In short, the use of limit switch components is to ensure the safety and protection of the chain.

7. Support frame

The support frame is simple in design, light in weight, more beautiful in working space, and smaller in size. The loading support is made up of two steel plates, which have been highly researched.

8. Gear

The premium alloy gear with heat treatment is of very high quality. This can make DHS cranes have smoother operation and provide a long service life for our products.

9. Gearbox

The inner gear and the gear ring are all made of fine steel and through heat treatment. This can ensure that the products have low noise when working.

10. Chain wheel

Two sprocket wheels which can make the chain slide strongly and also can operate smoothly to ensure safety and security.

11. Transformer
24V/36V transformer device is used to protect against unexpected accidents caused by the power leakage of our products. In addition, it also ensures safe use when raining.

12. Electromagnetic contactor
The electromagnetic contactor can be used safely even under high frequency conditions. This function makes the products more reliable.

13. Reverse phase sequence protection device
Special electrical equipment that controls the circuit will not work under the wrong wiring of the power supply.

14. Plastic coating

Using advanced internal and external plating technology, plastic coating seems to be a new plating process after many years of work.
